How to Choose the Right Machine for Quad and Hamstring Development
The leg extension machine is one of the most debated pieces of equipment in strength training. Critics argue it's non-functional and hard on the knees. Coaches who actually program for hypertrophy know it's one of the most effective tools for isolated quad development — and that the knee concerns are largely overblown when the machine is used correctly with appropriate range of motion.
This guide is for buyers who've already decided they want a leg extension machine and want to know how to choose the right one. We'll cover the key variables: machine format, weight stack configuration, adjustability, and the TKO options worth buying.
Leg extension only vs combo leg extension/curl
The first decision is whether you want a dedicated leg extension machine or a combination leg extension and leg curl machine.
Dedicated leg extension machines do one thing: extend the knee against resistance, loading the quadriceps. They're simpler, often more compact, and allow the manufacturer to optimize the cam geometry specifically for the extension movement. Best for facilities that already have a dedicated leg curl machine or where quad isolation is the primary goal.
Combination leg extension/curl machines do both movements on a single unit — leg extension for the quads, leg curl for the hamstrings. They save floor space and cost compared to buying two separate machines. The tradeoff: the cam geometry is a compromise between the two movements, and the seat/pad positioning may not be as precisely optimized for either movement as a dedicated machine.
TKO offers both formats:

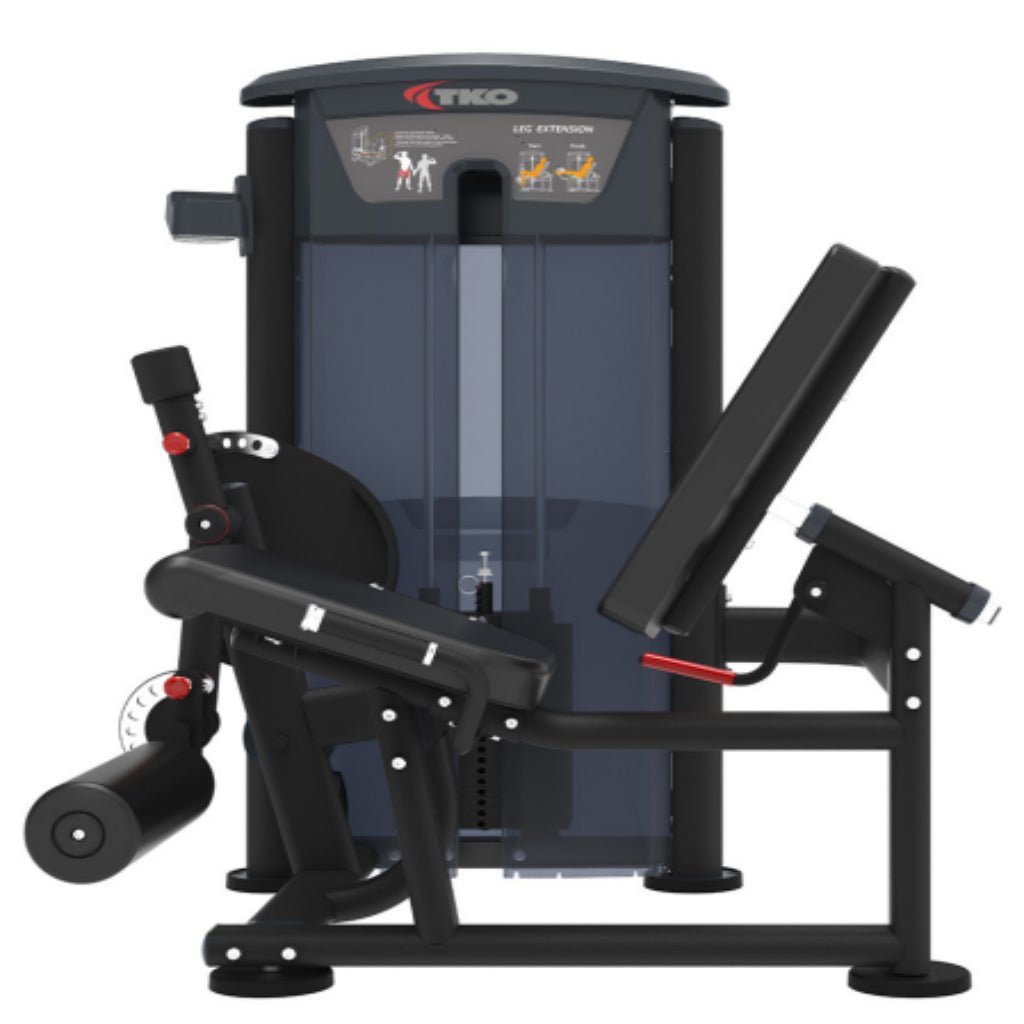

- TKO Selectorized Leg Extension Machine — dedicated leg extension, optimized for quad isolation
- TKO Selectorized Leg Extension Curl Machine — combination unit covering both quad and hamstring training
- TKO Selectorized Duals Leg Extension Curl Machine — dual-stack combination unit for simultaneous or independent bilateral training
Single stack vs dual stack
Single-stack machines use one weight stack for both legs simultaneously. Dual-stack machines have independent weight stacks for each leg, allowing unilateral training — one leg at a time, or both legs at different weights.
Single stack is the standard for most home gyms and personal training studios. Simpler, lower cost, smaller footprint. Adequate for the vast majority of users.
Dual stack is the right choice when:
- You have a significant strength imbalance between legs and want to train them independently
- You're running a rehabilitation or physical therapy setting where unilateral training is a clinical priority
- You're building a high-volume commercial facility where multiple users with different needs will use the machine
The TKO Selectorized Duals Leg Extension Curl Machine is the dual-stack option for buyers who need independent bilateral training capability.
Key specs to evaluate
Weight stack capacity
Most commercial selectorized leg extension machines run 200–300 lb stacks. For the vast majority of users, this is more than sufficient — leg extension is an isolation movement, not a max-effort compound lift. If you're an advanced lifter who regularly tops out the stack on leg extensions, you may need to look at plate-loaded alternatives.
Cam geometry and resistance curve
The cam — the oval-shaped pulley that connects the weight stack to the movement arm — determines how resistance changes through the range of motion. A well-designed cam provides more resistance where you're strongest (mid-range) and less where you're weakest (fully extended or fully flexed). This is one of the areas where commercial-grade machines like TKO's outperform budget alternatives — the cam engineering is more precise.
Seat and back pad adjustability
The seat position determines where the knee joint sits relative to the machine's pivot point. If the knee joint doesn't align with the machine's pivot, the movement creates shear forces on the knee that increase injury risk. A quality machine has multiple seat positions to accommodate different leg lengths. Always adjust the seat before your first set.
Ankle pad adjustability
The ankle pad should sit just above the ankle joint, not on the shin or the foot. Adjustable ankle pad height and depth accommodates different lower leg lengths. This is a non-negotiable feature on any machine you're buying for multi-user use.
Footprint
Selectorized leg extension machines are relatively compact. Most commercial units run 50–65" long × 40–50" wide. Add 24" of clearance at the front for entry and exit. Total room footprint: plan for roughly 7 ft × 5 ft for a single-stack unit.
The brand worth knowing: TKO Strength & Performance
TKO is an American-engineered commercial fitness brand with a strong track record in selectorized equipment. Their leg machines are built to commercial spec — heavy-gauge steel frames, precision-machined cams, sealed bearings, and commercial-grade upholstery. As an authorized TKO dealer, we carry their full selectorized lineup with full manufacturer warranty.
Browse TKO selectorized fitness equipment | Browse the full TKO lineup.
What you'll spend
- $1,500–$3,000 — entry-level commercial selectorized leg extension. Adequate for serious home gym use.
- $3,000–$5,000 — mid-tier commercial. Better cam geometry, heavier frame, longer warranty. Right for personal training studios.
- $5,000+ — dual-stack or premium commercial. For high-volume facilities or unilateral training requirements.
Financing is available at checkout through Afterpay ($0–$4,000), Shop Pay Installments ($35–$30,000), and Affirm ($2,000–$30,000). See our FAQ for financing details.
Mistakes that cost buyers money
- Skipping seat adjustment. A misaligned knee pivot is the primary cause of knee discomfort on leg extension machines. Always set the seat position before loading the machine.
- Buying residential-grade for commercial use. Budget leg extension machines fail quickly under daily multi-user loading. Match the machine to the actual use case.
- Ignoring the cam. A poorly designed cam creates uneven resistance that limits muscle development and increases joint stress. This is one area where the price difference between budget and commercial machines is most visible.
- Buying gray-market without warranty. Always verify you're buying from an authorized dealer. We explain why this matters here.
How to actually pick yours
- Decide: dedicated leg extension or combo extension/curl based on your space and budget
- Decide: single stack or dual stack based on your training goals
- Measure your space — confirm the footprint fits with clearance
- Match the machine tier to your actual usage intensity
- Confirm you're buying from an authorized dealer with full warranty coverage
If you'd rather skip the research, contact us with your space dimensions, budget, and training goals. We'll send a recommendation back the same day.
Or browse directly: TKO selectorized equipment | Full TKO lineup.
